Ocelot 145
8.753 €
delivery
Estimated delivery on 3 - 17 March, 2025
Additional information
| ocelot color | ice satin, stillwater satin |
|---|---|
| size | MD, LG, XL |

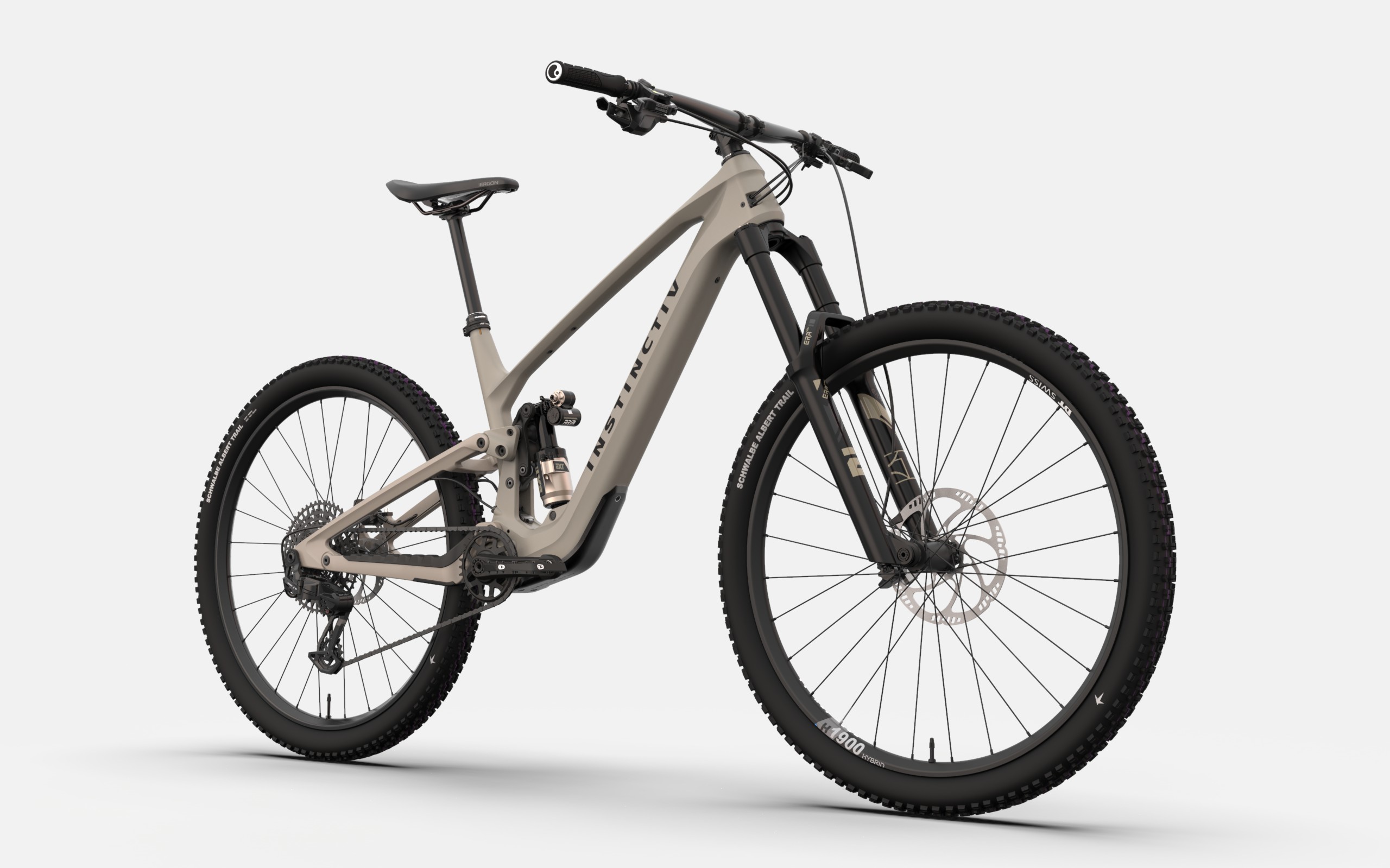

ocelot 145
Front travel of 170mm, rear travel of 145mm. Weight 19.3kg. Swiss engineered, powerful 80Nm, 600W drive system. Compact 400Wh battery.
frameset
frame
Carbon fibre monocoque with 145mm of rear travel. PUMA suspension system. Internal cable routing. Rockers, links and pivot axles from AL7075. Frames are assembled in-house. Coating is a two-component, 3 layer system, applied by hand in Europe. Post Mount 180 mm brake system. Max tire width: 2.6”.
bearings
Sealed double row ball bearings and sealed max ball bearings.
axle
DT Swiss RWS 148×12 (X12), with detachable lever, HWQASM00S2035S
drivesystem
motor
The all new Maxon Air S motor. Powerful, very silent and an extremely natural ride feel. Power output 80Nm, 620W and 82.5% efficiency at 80rpm. Motor weight: 1.96kg
battery
The bikes comes with a fixed build-in 400Wh battery. An external range extender of 250Wh can be attached onto the frame.
controller
Maxon full color display in the top tube, minimal switch on the handle bar to change drive modes and a Maxon App to change technical setttings.
suspension
fork
Fox Float 38 Factory Series, 170 mm travel, GRIP2, 15QRx110, 44 mm rake.
shock
Fox Float X2 Factory EVOL 185×55 trunnion
2 position lever adjustment, 10-clicks tuning range.
transmission
drivetrain
Standard the bikes come with a SRAM Eagle GX drivetrain. Optionally this can be upgraded to SRAM X0, Transmission GX or Transmission X0. The derailleur hanger is UDH compatible.
chainrings
The standard chainring size is 32T, maximum 36T is possible and minimum 30T.
cranks
e-Thirtheen Helix Core Alloy Crank, 165 mm
brakeset
brakes
Standard this bike comes with Magura MT7 PRO brakes with 4 piston front caliper and 4 piston rear caliper. Optionally the bike can be equiped with the powerful Magura Gustav Pro brakes.
discs
Magura 203 mm Storm HC front disc, Magura 180 mm Storm HC rear disc.
wheelset
front wheel
Standard this bike comes with an alloy 29″ DT Swiss H 1900 Spline 30 front wheel, 110×15 BOOST, ISO 6 bolt. Optionally it can be equipped with a carbon 29″ DT Swiss HXC 1501 Spline 30 wheel, 110×15 BOOST, ISO 6 bolt.
rear wheel
Standard this bike comes with an alloy 29″ DT Swiss H 1900 Spline 30 rear wheel, 148×12 BOOST, ISO 6 bolt. Optionally it can be equipped with a carbon 29″ DT Swiss HXC 1501 Spline 30 wheel, 148×12 BOOST, ISO 6 bolt.
tires
Front and rear tires are Schwalbe Albert Trail 63-622, 29x2.50 , E-50, Addix Soft Black.
cockpit
handlebar
Standard handlebar is a Raceface Turbine R35 alloy, 8° backsweep, 20mm rise. Optionally the bike can be equipped with a carbon Beast UD riser, 8° backsweep, 25mm rise.
stem
Raceface Turbine R stem 35 mm.
grips
Ergon GE1 MTB Enduro Evo grips in black.
seatpost
size md
Fox Transfer Factory dropper post with Fox Transfer lever 150 mm.
size lg and xl
Fox Transfer Factory dropper post with Fox Transfer lever 175 mm.
weight
bike
18.9 kg, which is the approximate weight based on the lightest configuration in size LG, without pedals.
rider
120kg / 264lb is the maximum rider weight limit, which includes the gear and luggage (helmet, clothing, backpack, etc.)
MD
LG
XL
- your length (cm)
- 165 - 180
- 178 - 190
- 188 - 205

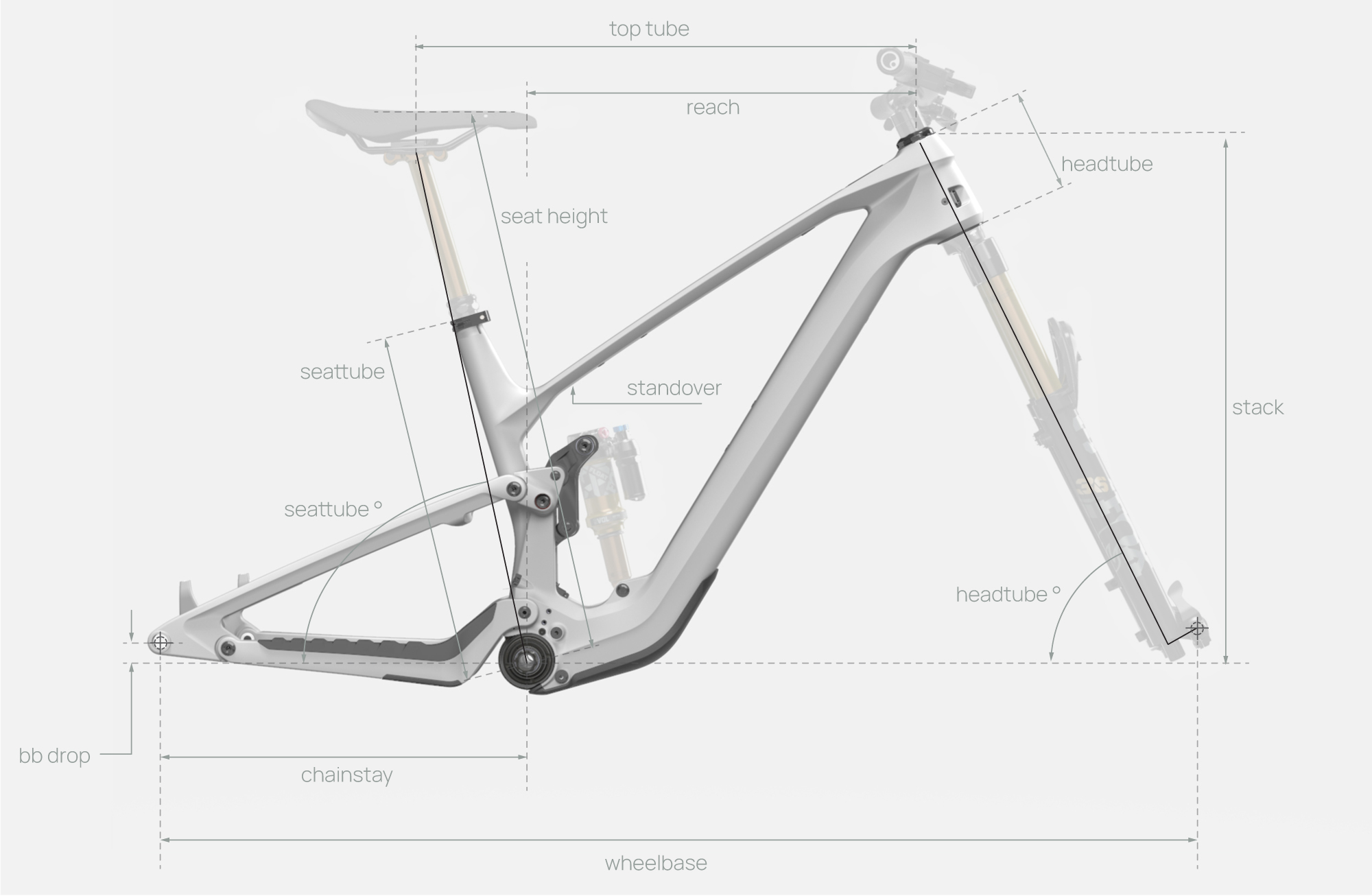

- stack
- reach
- top tube
- head tube angle
- head tube
- seat tube angle
- seat tube
- chainstay
- wheelbase
- bb drop
- bb height
- standover height
- 626
- 452
- 605
- 64.5 °
- 110
- 76.0 °
- 430
- 445
- 1227
- 26
- 349
- 697
- 624
- 486
- 642
- 64.5 °
- 120
- 76.0 °
- 460
- 445
- 1265
- 26
- 349
- 729
- 637
- 518
- 678
- 64.5 °
- 135
- 75.9 °
- 460
- 445
- 1303
- 26
- 349
- 728
- min. seat height*
- max. seat height*
- max. insertion depth
- 633
- 733
- 228
- 688
- 818
- 258
- 688
- 818
- 258
All sizes are given in millimeters, unless stated otherwise.
* with a saddle stack of 40mm, a dropper post of 150 mm for size medium and a dropper post of 175 mm for sizes large and extra large.
body height
Stand straight with your back against a wall and place a book on your head. Make sure the book is parallel with the floor and at right angles to the wall, touching the wall. Make a mark on the wall with tape and measure the distance between the bottom of the book and the floor.
leg length
Stand straight up with your back against a wall. Take a book and tuck it between your legs. Pull up the book, simulating the pressure of sitting on a bike saddle. Make a mark on the wall with tape and measure the distance between the top of the book and the ground.
space technology
Maxon has been developing and building precision electric drives for 60 years. The technology is designed to deliver maximum performance in the smallest possible space. Efficient and absolutely reliable: maxon’s drives are used in robots, vehicles, and devices all over the world – and even in rovers on Mars.
drive
The drive unit consists of a very compact but powerful 80 Nm brushless maxon EC internal-rotor motor and a single-stage performance planetary gearhead. With the e-bike system, down tube designs with diameters as small as 60 mm are possible. The Q factor starts at only 155 mm and the innovative freewheel has no noticeable resistance. It is possible to mount either racing or MTB chain rings.
whisper silent
The complete system developed by maxon weighs only 3.5 kg, is integrated out of sight in the frame and has an innovative freewheel that ensures a natural riding experience. Support can be activated at the press of a button. When the rider exerts more pressure on the pedals, the torque sensor immediately responds with more power.
battery
The lithium-ion battery is permanently mounted in the down tube and can only be removed by the specialist dealer, if necessary. It combines a low weight of only 1.8 kg with an energy capacity of 400Wh.
range extender
A range extender is available for longer rides and adds another 250Wh. It works like a power bank and charges the integrated battery. The Range Extender can be stored in your backpack or inserted in a BIKEDRIVE AIR bottle holder and connect to the system with a cable.
interface
The HMI gives you full control over your e-bike. You can connect it to your smartphone via Bluetooth (BLE), or to other devices from Garmin, Sigma, or o-synce via ANT+. You can choose between three levels of support and configure them individually. In the factory settings, there are three preset modes: Cruise (gentle tailwind), Push (sport mode), Blast (lots of power for steep inclines). An inconspicuous and intuitive shifter for the racing bike or mountain bike handlebars is available as an option.
app
Maxon offers a connect app and a service app for iOS and Android. With the connect app, the cyclist can individually tune the support levels. The Service app is a tool that allows bicycle mechanics to quickly perform troubleshooting and order spare parts.
progressive
We have given the Ocelot 145 a light progressive character. How progressive a bike is depends primarily on the regression of the leverage ratio.
The leverage ratio of the Ocelot 145 decreases about 16% during the travel. This way the suspension is supple and sensitive around sag, yet big hit capable. Plush with little risk of bottoming out.
efficient
With our proprietary PUMA suspension system we are able to design an anti-squat value that is more or less the same in all gears. At sag we designed the Ocelot 145 with an anti-squat value of 118% in the granny gear and 109% in the most heavy gear.
In short this compensates for 100% of pedal bob induced by the pedal torque and another 9 - 18% to account for your body movement on the bike.
Anti-squat values come down throughout the bikes’ travel: from more than 130% down to less than 85% to create less pedal pop deeper in the travel.
This way our team crafted a very efficient platform in all gears during a climb or sprint, yet very lively when going downhill.
fully active
The Ocelot 145 benefits from very little pedal kickback. Especially at high speed, in heavier gears kickback is negligible.
This is a major benefit because it means the suspension remains fully active and sensitive during quick descends, even when pedaling.
We achieved this thanks to our compact kinematics with limited chain growth.
sensitive
When you brake, the center of gravity shifts forward causing the fork to compress and the rear suspension to extend or compress, depending on the anti-rise value.
The Ocelot 145 has anti-rise levels between 86 - 102% throughout the bikes’ suspension travel. This means that braking will have a smaller effect on the suspension, while compensating nicely for the mass transfer during braking.
In effect this stops you and the bike from tilting excessively forward under hard braking. At the same time levels around 100% allow the suspension to remain active and sensitive throughout your braking zone.
smooth
The Ocelot 145 is designed to offer a near vertical axle-path during the first half of the travel. Exactly, this is the part of the suspension travel that you use most during very fast sections.
When the vectors from trail obstacles and the wheel path are more in line this results in the suspension being compressed rather than the bike being ‘held back’. You will feel this as extremely smoothness of the suspension.
The favorable axle path is a result of our patented Puma kinematic platform and its compact rocker layout.
leverage ratio
anti rise
axle path
anti squat
pedal kickback
GX Eagle Drivetrain
GX Eagle is your partner for all rides, all the time, all day. Long days, quick rides and everything in-between, GX Eagle is the ecosystem at its best. With the all new 520% range, all new colourways and seamless compatibility with the rest of the ecosystem, GX Eagle is there to maximize the potential of your ride experience.
X01 Eagle Drivetrain
For riders and racers who push for the purpose of elevation. Whether having fun, progressing skills, or taking the win – X01 Eagle is designed and refined to support riders with the power of expanded capability.
GX Eagle Transmission
GX Eagle Transmission is ready to go toe to toe with anything, perfect shifting that’s unapologetically robust. It’s simply the most dependable drivetrain we’ve ever created, built to hold its own on any trail and outlast the rest, even with the added power of a motor. GX Eagle Transmission is even rebuildable to keep working season after season.
X0 Eagle Transmission
This is for put-up or shut-up riders who don’t have time to wonder about their componentry. The level of full legitimacy, X0 Eagle Transmission gives confidence to the most serious riders in every discipline. Tough, reliable, precise and light, X0 Eagle Transmission is built to help you prove your mettle.
magura MT7 Pro
The Carbotecture SL brake master consists of a composite material made of polymers and embedded carbon fibres. This combination makes the brake master light and extremely resistant.
The MT7 Pro’s one-piece 4-piston caliper is made of forged aluminium. This manufacturing method gives the caliper its extraordinary degree of rigidity, making the MT7 Pro one of the strongest and most easily-modulated brakes on the market. With tolless reach adjust.
magura Gustav Pro
Anyone who knows the MT7 knows that Magura is serious about performance. With this one Magura goes one better!
For more control, later braking points and less arm pump. Because anyone can build brakes that stop light bikes. But the Gustav Pro slows down even the heaviest bikes with ease and is therefore predestined for the most powerful e-bikes and gravity machines.
raceface turbine alloy
Dialed in to fit your modern riding style and set-up, the Turbine R is a rad all-mountain handlebar with an aggressive riding position and a killer strength to weight ratio.. With 8° backsweep and 20mm rise.
beast ud carbon
Lighter, tougher, better. The excellent balance of flexibility, vibration damping and robustness ensures precise steering response and the ultimate on-trail experience. With 8° backsweep and 25mm rise.
H1900 spline
When motor assistance and leg power meet, the range of terrain a bike can conquer grows almost exponentially. The H 1900 SPLINE is designed for this, now upgraded with the famous DT Swiss Ratchet technology.
HXC 1501 Spline ONE
This Hybrid wheelset was made for riders who are looking for the ultimate performance an eMTB wheelset can offer. Now with a carbon rim, the HXC 1501 SPLINE ONE becomes the high-end Hybrid MTB wheelset in the DT Swiss portfolio.
ergon smc for men
Comfort and dynamic response as an unbeatable combination. You’re comfortable in every position and ready to put the pedal to the metal. Leave saddle discomfort in the dust and enjoy the trails with the SMC Men Sport Gel.
ergon smc for women
An extra-thick orthopedic foam and anatomic gel pads reduce pressure points when seated while the women’s specific relief channel prevents soft-tissue numbness and pain.
crankbrothers stamp 1 gen 2 large
The new Stamp 1 Gen 2 builds upon the Stamp legacy with a true concave body design for enhanced on-trail confidence.
crankbrothers stamp 3 large
Size specific magnesium platform pedal provides optimal shoe/pedal interface.
crankbrothers stamp 7 large
Pro-level concave platform pedal provides optimal shoe/pedal interface.
crankbrothers mallet e
The ultimate pedal for enduro racing, with integrated traction pad technology.
